Steel frames for mirror and art

Framed

Cut, welded and finished in Vancouver, Washington

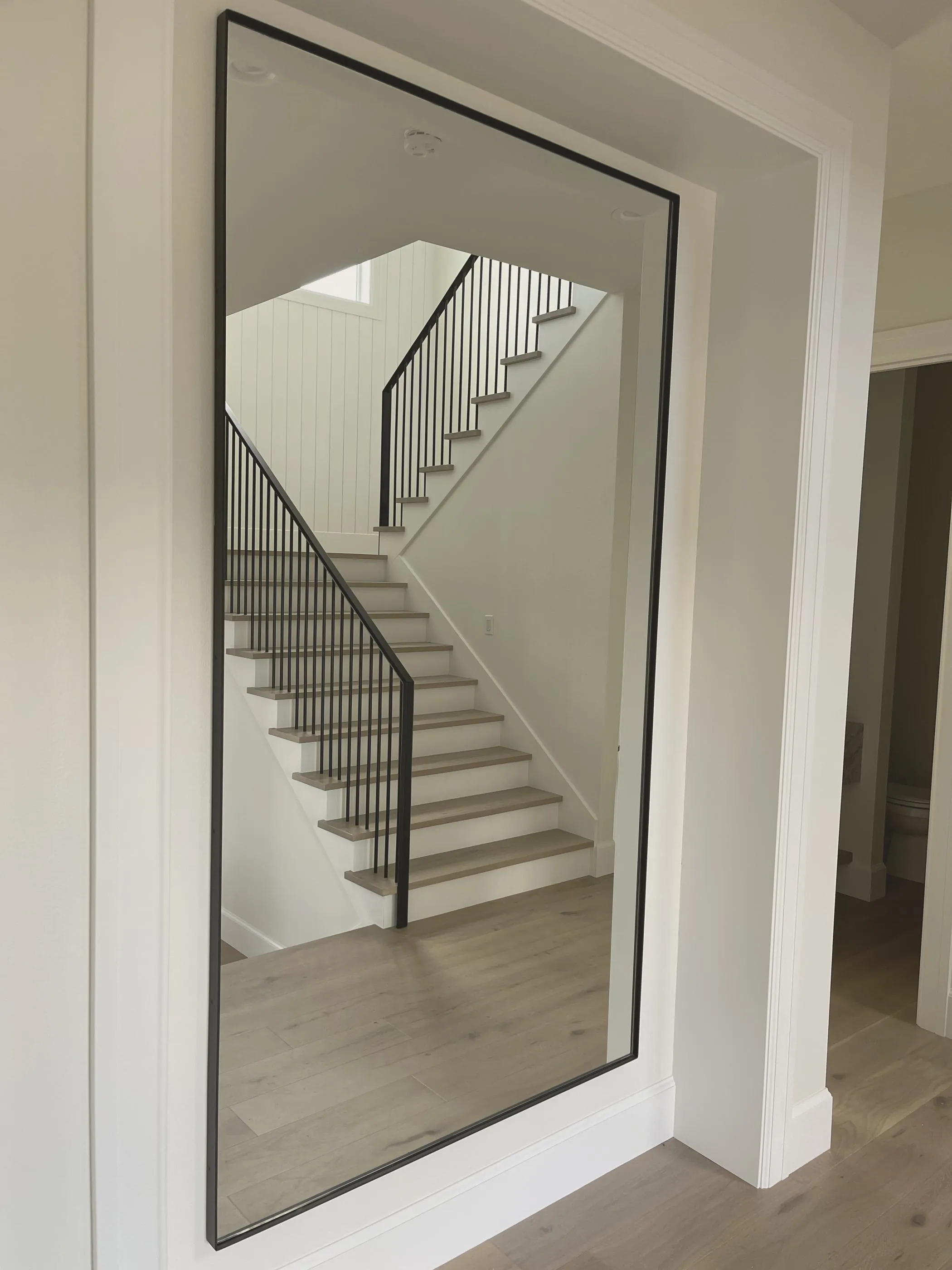

A tall black steel-framed mirror installed in a finished home, reflecting a staircase with wood treads and black balusters.
Installed, Vancouver WA

The stair in itis ours too

A frame we made, hung in a house, reflecting a staircase we made. Everything drawn further down this page is drawn to the section this one was built to.

Not a frame.A section.

It is hot-rolled steel angle, mitered on a fiber laser and welded closed by hand, and the glass rests down inside the L. What faces the room is an eighth of an inch of steel, with the glass recessed in shadow behind it. No stocked frame holds that line, because no stocked frame is made from structural angle.

Turn it. Move your cursor across the frame.

See the collection
WALL ⅛″ edge, all the room sees mirror ¼″ backer ¾″ steel angle ⅜″ REVEAL 1½″ off the wall

Drawn with ¾″ backing. On a shipped wall piece the backing is yours to pick, and it sets how deep the shadow reads: thinner backing, deeper reveal.

The depth isnot a style

The reveal is what the section produces: the leg stands an inch and a half off the wall, the glass sits inside it, and the steel is left standing proud of the glass. Nothing is applied, nothing is trim. The drawing is the product.

How it’s built

  1. 01

    Scanned

    The opening is captured with a 3D scanner, not a tape. The frame is built to the wall it will hang on.

  2. 02

    Cut by light

    Every miter is cut on a fiber laser. The four corners close because they were never approximate.

  3. 03

    Welded closed

    Each corner is welded by hand into a single continuous line of steel.

  4. 04

    Ground flush

    The joint is ground until it disappears. Run a finger over the corner. Nothing.

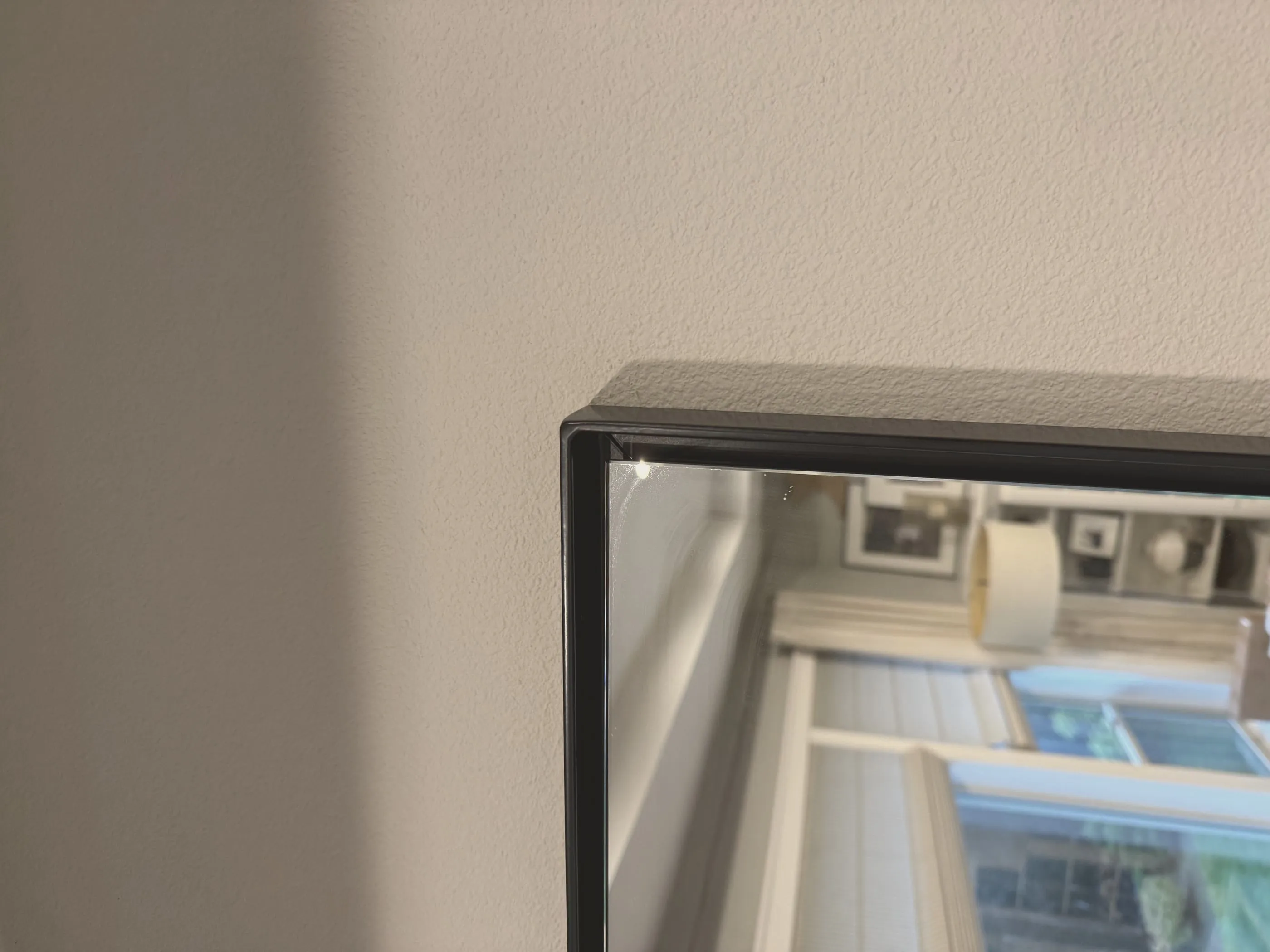

Close-up of a mitered corner on a black powder-coated steel frame, the glass sitting recessed behind the steel.
The corner, ground flush

Four pieces, drawn to scale

Four catalogue sizes, priced and ready to order, frame only. Any other dimension is cut to your opening and quoted.

F.01$85036 × 48 IN
Matte black
F.02$1,05032 × 72 IN
Warm white
F.03$1,35048 × 72 IN
Warm white
F.04$1,95072 × 96 IN
Matte black · art

Custom

Any opening between 24 and 144 inches, either finish, wall or floor. Cut to your dimensions and quoted inside twenty-four hours.

Build your size

Four is where the catalogue ends, not the shop. Beyond four by six feet nobody stocks this. The same section takes a canvas or a print just as well.

Four sizes iswhere others stop

Every frame is cut to one wall. Give us the opening and the section builds to it: the eighth-inch edge, the inch and a half off the plaster, held at any dimension you name. Pick the backing and you pick the shadow.

Your opening

Catalogue sizes run $850 to $1,950, frame only. Any other size is quoted.

× inches
Finish
The piece
How deep the shadow sits
  • Glazier cuts glass to35½ × 47½
  • SupplySteel frame only, or complete if you are local
  • Reveal this gives⅜″
  • Steel14 ft · 17 lb
  • Wall load once glazed57 lb
  • Lead time2 weeks to ship
Send us your dimensions

Trade pricing. We come back inside twenty-four hours with a number and a drawing, and nothing is cut until you approve it.

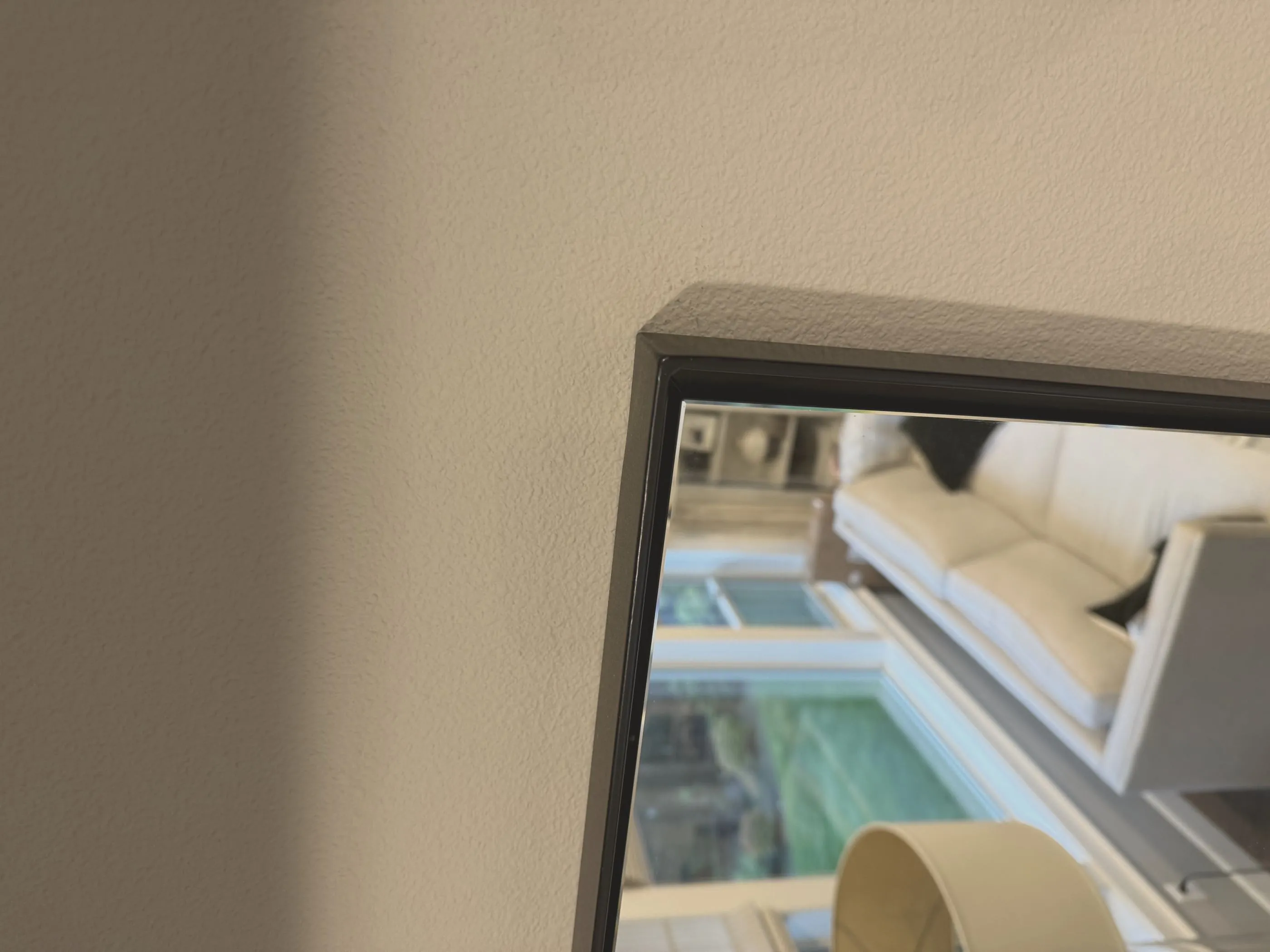

Macro detail of a mitered corner on a matte black powder-coated steel angle frame, showing the ground-flush joint and the glass recessed behind the steel.
The joint, after grinding

Questions

What exactly do I get?
A floor mirror arrives complete, mirror set, anywhere. A wall piece in Portland or Vancouver arrives complete too, because we supply the glass and set it ourselves. A wall piece shipped anywhere else is the steel frame alone, and your glazier cuts and sets the glass to the drawing that ships with it.
Do I need a glazier?
Only for a wall piece shipped outside Portland and Vancouver. Locally we handle the glass. Floor mirrors never need one.
How deep is the shadow around the glass?
You choose it. The frame stands 1½″ off the wall, and whatever the backing does not fill becomes the reveal. A ¾″ backing leaves ⅜″. A ½″ backing leaves ⅝″. A ¼″ backing leaves ⅞″. A ⅛″ backing leaves a full inch.
What size can you make?
Any size. Four catalogue sizes run from 36 × 48 inches at $850 to 72 × 96 inches at $1,950, frame only. Anything else is quoted from the dimensions you send.
How long does it take?
Two weeks to ship, counted from the day you approve the drawing. Nothing is cut before that.
What happens if the glass does not fit?
When we scan the opening ourselves, the fit is on us. When you send us dimensions, the frame is built to the drawing you approved, so the drawing is what both sides are holding.
What is it made of?
1½″ × 1½″ × ⅛″ hot-rolled steel angle, mitered on a fiber laser, welded by hand and ground flush. Powder coated matte black or warm white.
Where are they made?
Vancouver, Washington. Every frame is cut and welded in our own shop.
The guarantee

The drawingis the contract

Nothing is cut until you approve the drawing, and it ships two weeks after you do. When we scan the opening, the fit is on us. When you send the dimensions, the frame matches your drawing to the thousandth.

Order now

Or email a photo of your wall to ruben@nwironworks.com
